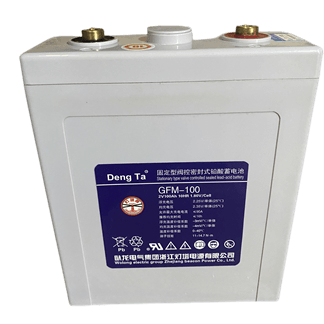

灯塔蓄电池GFM-100/2V100AH
阀控式密封铅酸蓄电池普通U系列
Normal U series VRLA battery
灯塔蓄电池U系列UPS来自英文Uninterruptible Power Supply之缩写,专为不断电系统设计产品,此系列为采用薄极板技术达成UPS解决方案,
灯塔蓄电池设计寿命12年以上(25°C环境年平均温度)。
UPS is an abbreviation of English Supply, designed for UPS systems. This series is a UPS solution with thin platetechnology. The battery design life is more than 10 years (25°C ambient annual average temperature).

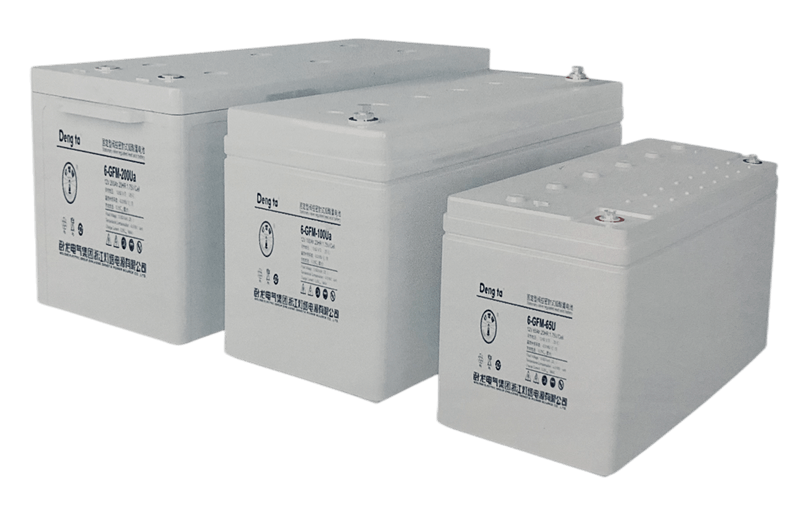

●灯塔蓄电池U系列
序号 |
型号 |
额定电压 (V) |
額定容量 C20 (Ah) |
外形尺寸(mm) |
参考重量 (KG) |
||
长 |
宽 |
总高 |
|||||
1 |
6-GFM-24U |
12 |
24 |
167 |
125 |
175 |
7.2 |
2 |
6-GFM-26U |
12 |
26 |
176 |
167 |
125 |
8.0 |
3 |
6-GFM-38U |
12 |
38 |
197 |
165 |
169 |
12.8 |
4 |
6-GFM-40U |
12 |
40 |
197 |
165 |
169 |
13.0 |
5 |
6-GFM-65U |
12 |
65 |
324 |
168 |
175 |
19.0 |
6 |
6-GFM-80U |
12 |
80 |
329 |
175 |
221 |
25.5 |
7 |
6-GFM-100U |
12 |
100 |
350 |
175 |
220 |
30.5 |
8 |
6-GFM-100UI |
12 |
100 |
350 |
175 |
220 |
28.5 |
9 |
6-GFM-100Ua |
12 |
100 |
329 |
175 |
221 |
27.5 |
10 |
6-GFM-100Ub |
12 |
100 |
329 |
175 |
221 |
29.0 |
11 |
6-GFM-100Uc |
12 |
100 |
329 |
175 |
221 |
30.5 |
12 |
6-GFM-120U |
12 |
120 |
407 |
177 |
225 |
32.0 |
13 |
6-GFM-150U |
12 |
150 |
483 |
170 |
240 |
42.5 |
14 |
6-GFM-200U |
12 |
200 |
520 |
239 |
223 |
58.0 |
15 |
6-GFM-230U |
12 |
230 |
549 |
259 |
233 |
63.0 |
16 |
6-GFM-250U |
12 |
250 |
549 |
259 |
233 |
66.0 |
灯塔蓄电池U系列典型应用领域
Application ields
长时间备电的中小型UPS系统、紧急照明系纺
Small and medium-sized UPS system andeemergency ightig system with long-term backup.
灯塔蓄电池U系列主要特点Main feature
●当电池在安全环境下使用时,则无须维护及补充水分,并且可以反复充放电;
●因为完全密闭,电池可垂直、水平或侧向放置且不影响安全性及功能性;
●长寿命、 低自放电及高可靠度;
●其安全及低内阻带来了良好地充放电性能改善;
●电池外壳依型号可采用符合UL 94V-0之阻燃ABS材科:
●通过IS09001, 14001, OHSMS1,OHSMS 18001认证;
●通过UL 1989认证;
●航空运输符合IATA/ICAO A67条款;
●水路运输符合非危险物品MG27修正类别;
●公路运输符合【Dry charge】49CFR171-189许可。
● when the battery is used in a safe environment, there is no need to maintain and supplement water, and it can be recharged and discharged repeatedly;
● because it is completely sealed, the battery can be placed vertically, horizontally or laterally without affecting safety and functionality;
● long life, low self discharge and high reliability;
● its safety and low internal resistance have improved the charging and discharging performance;
● according to the model, the battery shell can be made of flame-retardant ABS materials conforming to UL 94V-0:
● passed IS09001, 14001, ohsms1, OHSMS 18001 certification;
● UL 1989 certification;
● air transportation complies with iata/icao a67;
● waterway transportation complies with the mg27 revised category of non dangerous goods;
● road transportation complies with [dry charge] 49cfr171-189 license.
灯塔蓄电池U系列推荐工作温度范围:Recommended operating temperature range
●15°C~25°C (59°F~77°F) ●15°C~25°C (59°F~77°F)
●充电电压@ 25°C(77°F) ●Charging voltage @ 25°C(77°F)
●浮充: 2.27 V/cell ● Floating charge: 2.27 V/cell
●温度系数-3 mV/cell/°C ●Temperature cofficient -3 mV/cell/C
●循环:2.4V/cell ●Cycle:2.4 V/cell 卧龙电气集团浙江灯塔电源有限公司
